Treaty Oak Offroad

Dobinsons Hydraulic Bump Stops

$550.00 - $750.00

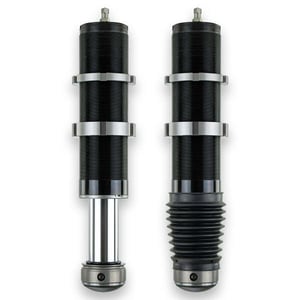

Image of Dobinsons Hydraulic Bump Stops
  • Image of Dobinsons Hydraulic Bump Stops

Dobinsons race ready hydraulic bump stops combine an off-road racing inspired triple seal design, a 3mm thick EDP coated steel body and includes interchangeable Rubber or Nylon rod ends to provide smooth, quiet, improved bottom out control during the harshest impacts with the ultimate in quality and longevity. The fully rebuildable and tunable shimmed CNC piston design allows a smooth initial impact with a progressive, velocity-sensitive increase in compression resistance to absorb impacts at the limits of suspension travel, whilst providing rebound damping to slow the bump stop rebound speed and reduce bucking and uncontrolled rebound associated with regular bump stops. Tunable Shim Stacks, Oil Levels and Nitrogen Gas pressures offer unlimited tuning combinations for your 4×4 or Off-road Race Rig to get the very best performance out of your suspension.

Features

CNC Machined 50/60mm Billet Aluminum Piston
EDP Coated 3mm Thick 56/66mm Steel Body
Threaded Body For Height Adjustment
Supplied with both Interchangeable Super Quiet Rubber Rod End & Hard Nylon
Available in 3 sizes: 56mm body x 50mm stroke, 66mm body x 57mm stroke & 66mm body x 85mm stroke
30/40mm Micro Polished Hard Chrome Shaft
Slow Rebound Valving To Prevent Bucking
Removable Dust Cover Boot For Stealth Appearance
Fully Rebuildable & Tunable
O-Ring Travel Indicator
Heavy Duty Extreme-Race style Triple Seal Design
Nitrogen Gas Charged & Tunable (100 to 300 PSI)
Extra Short Dead Lengths For Compact Fitment
Parts Breakdown:

HBS56-001 – 56mm body x 50mm stroke (Pair) – for 0-4″ lift heights
HBS66-002 – 66mm body x 57mm stroke (Pair) – for 0-4″ lift heights
HBS66-003 – 66mm body x 85mm stroke (Pair) – for 4-6″ lift heights
HBS56-004FK – Pair 56mm HBS Mounting Cans – Weld-on threaded cans
HBS66-005FK – Pair 66mm HBS Mounting Cans – Weld-on threaded cans
